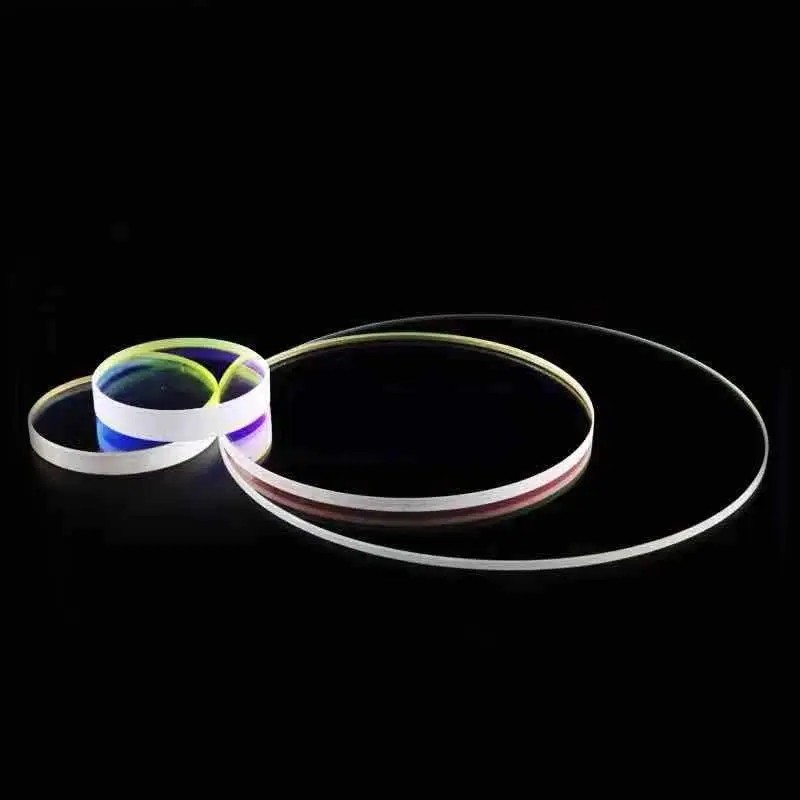

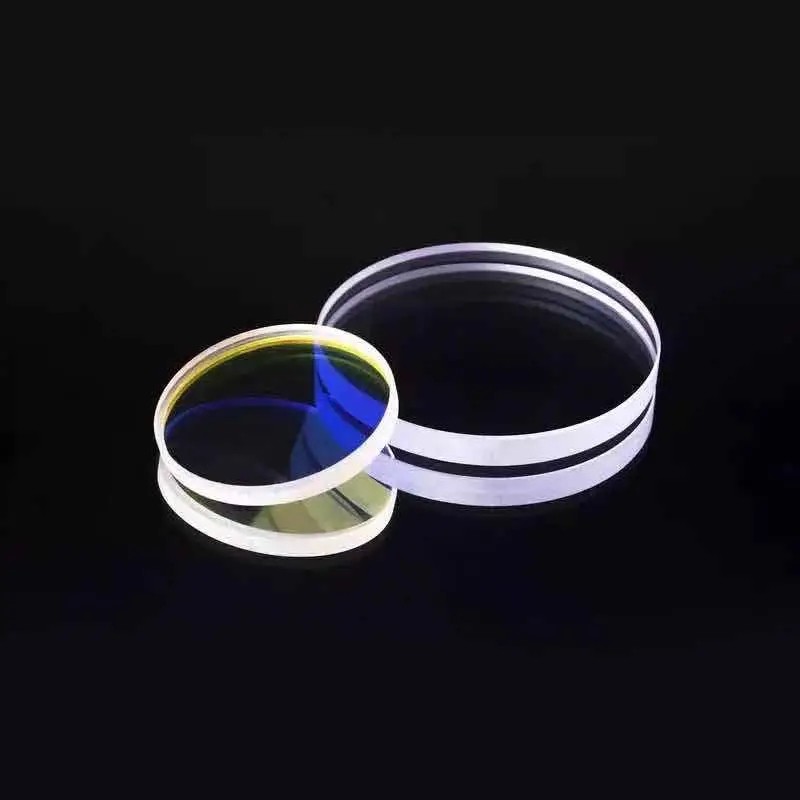

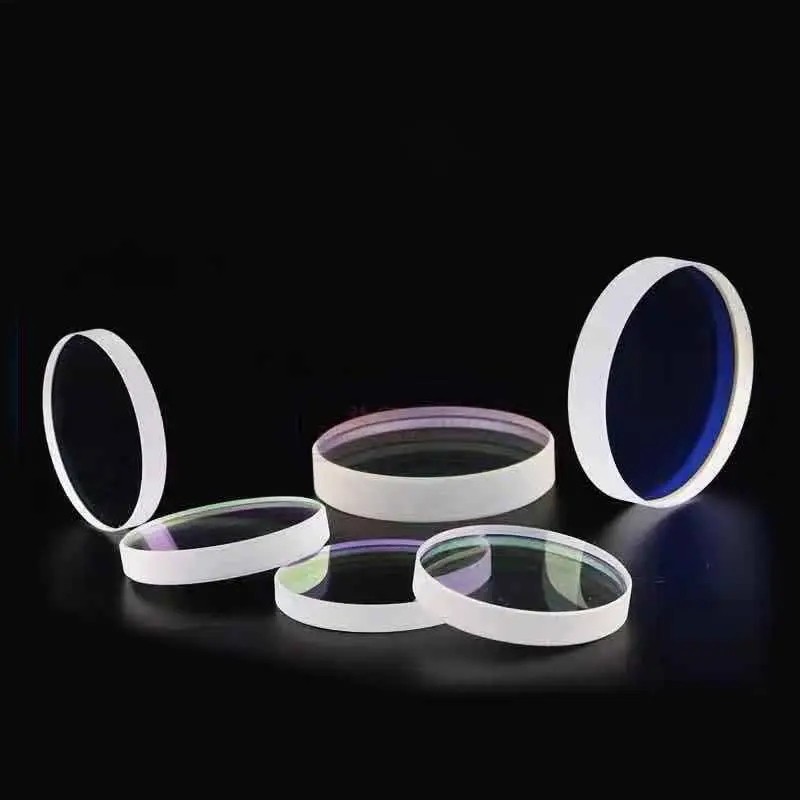

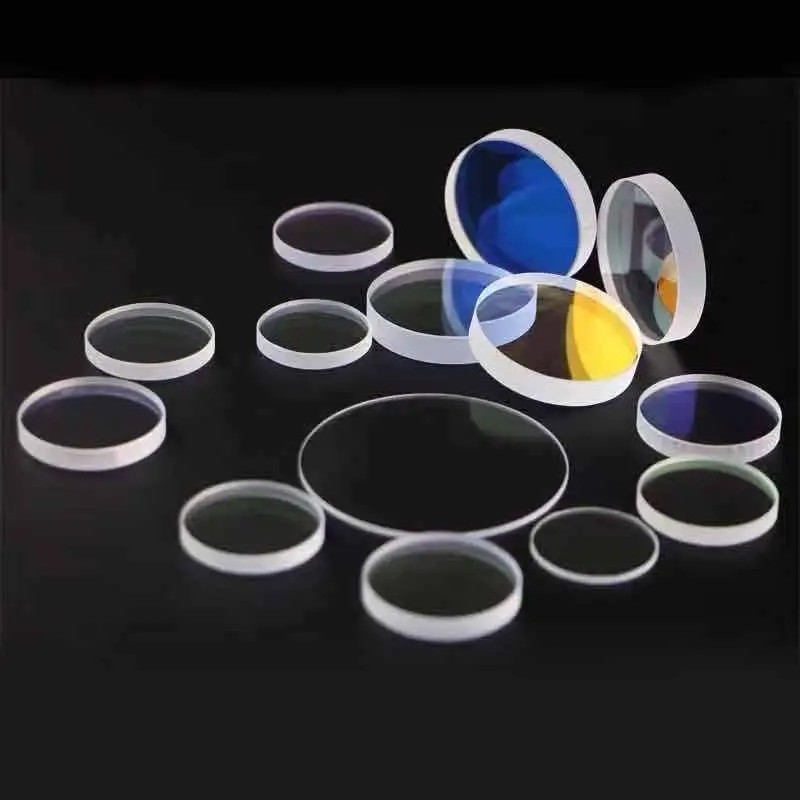

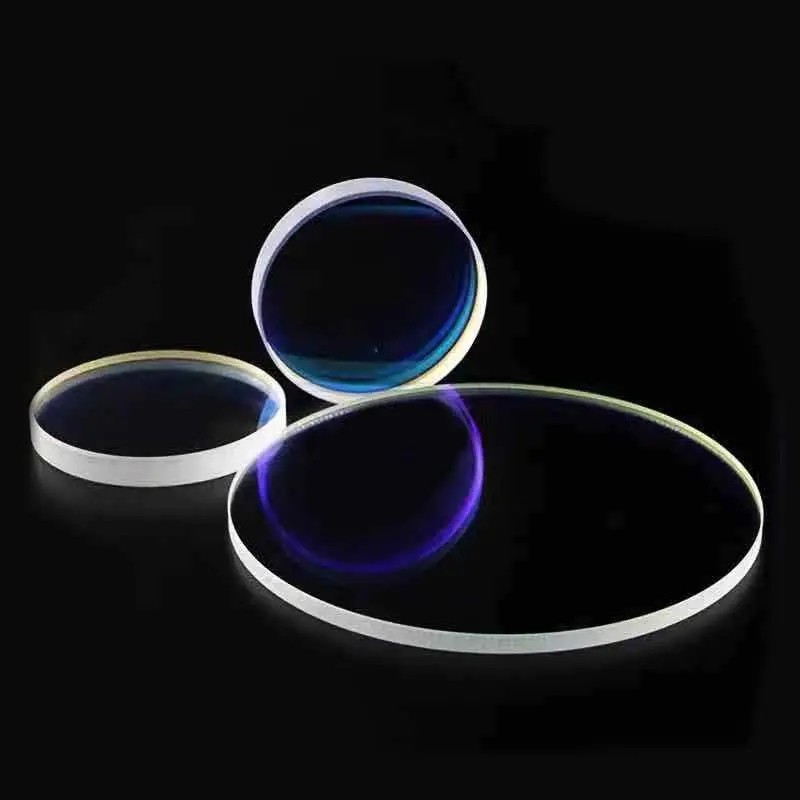

Optical windows

MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.

EMAIL


 Material:N-BK7,  or upon other optical request.

● Diameter:5-200mm

● Dimension Tolerance: +/-0.05mm

● Surface accuracy: λ/8 @632,8nm

● Clear aperture : >90%

● S/D :60-40,40-20,20-10

● Coatings: AR coating,BBAR coating, dichroic coating, Al reflective coating, customized available.
