● MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.

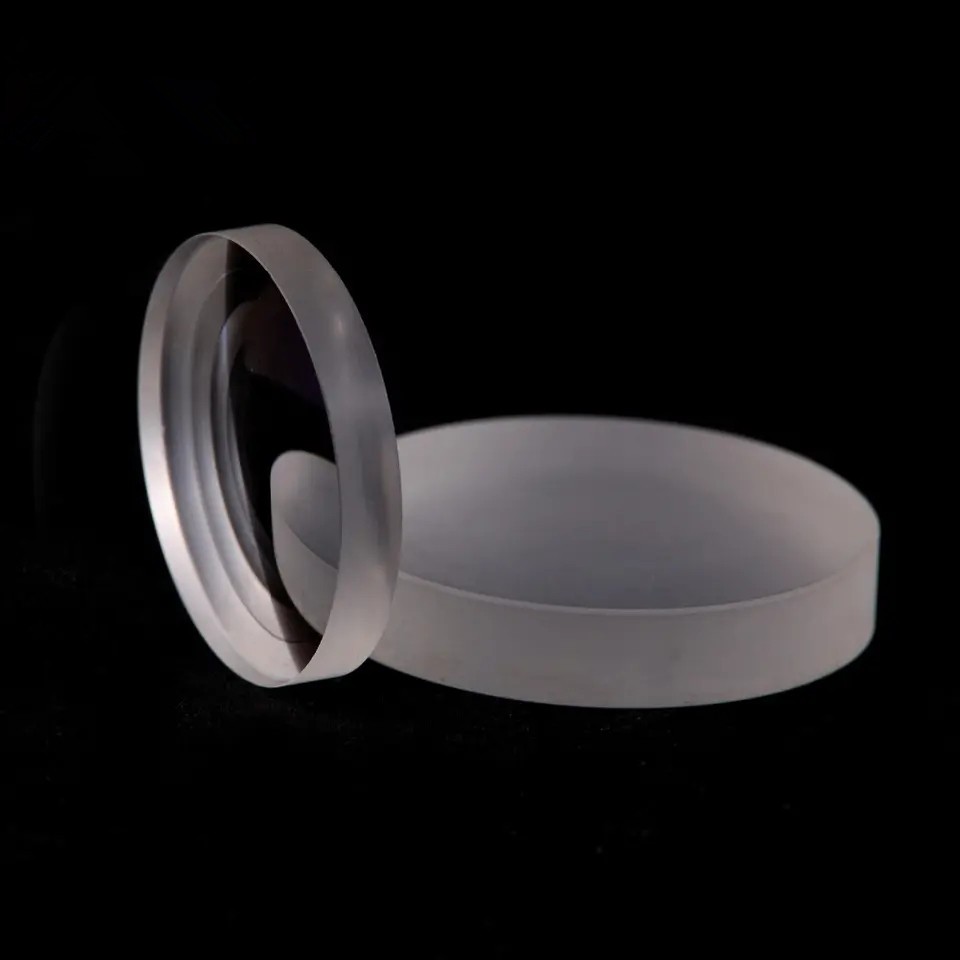

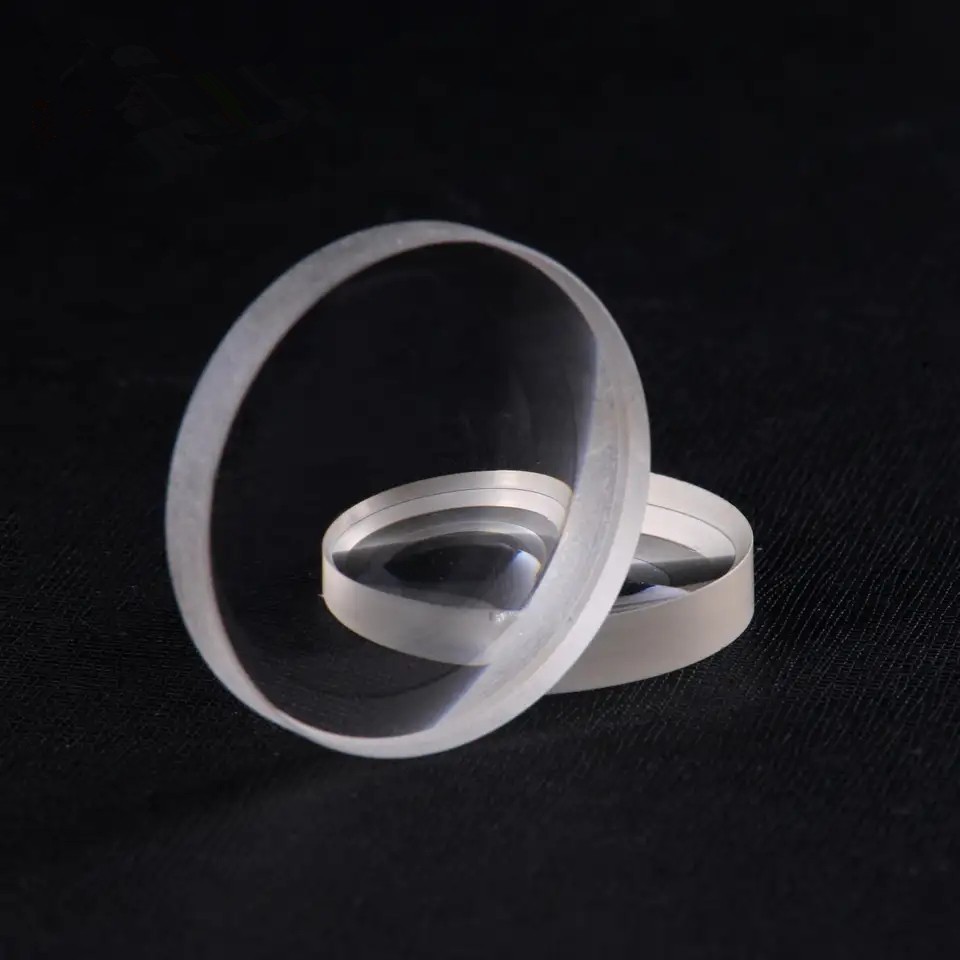

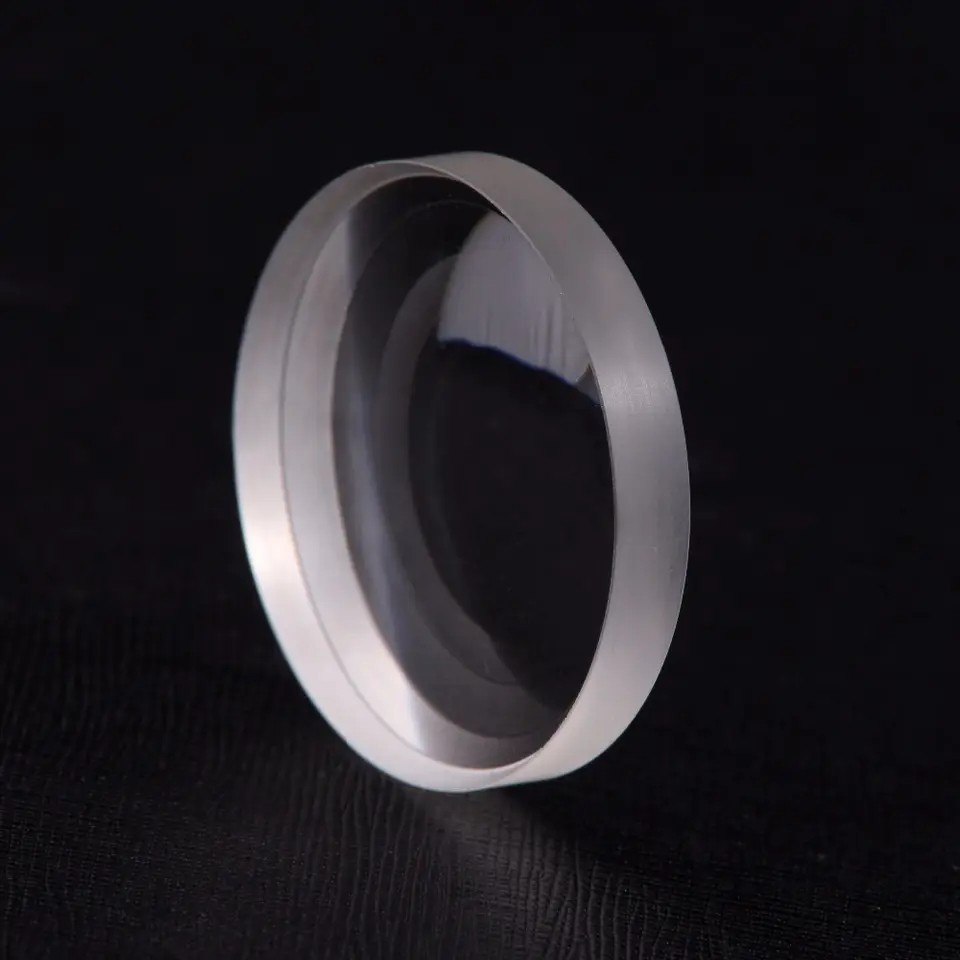

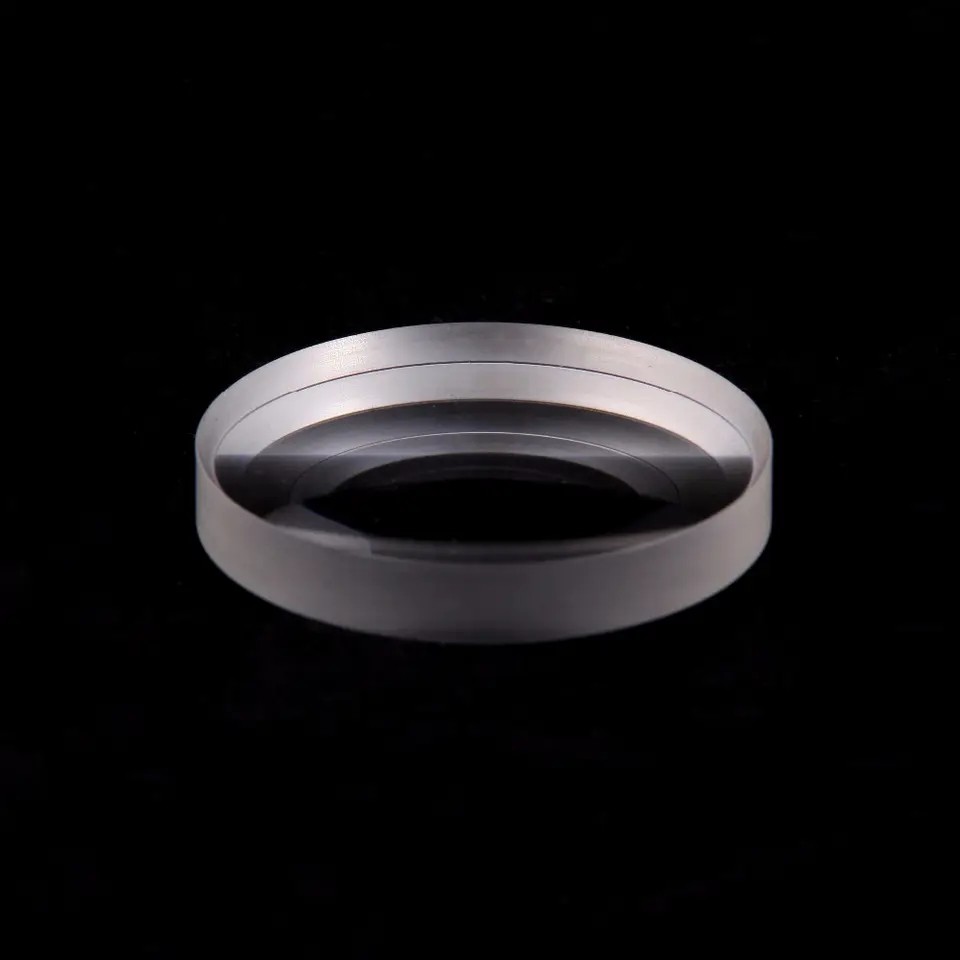

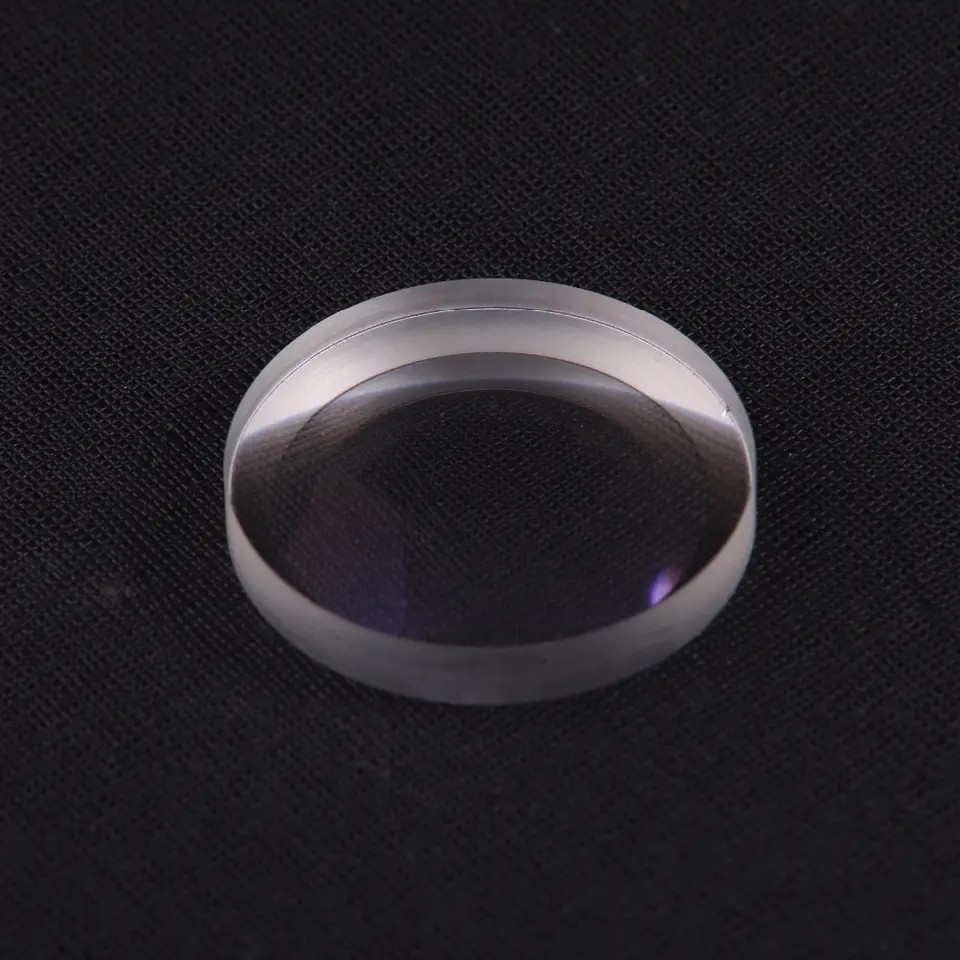

Meniscus lens is a lens which has two spherical curved surfaces, convex on one side and concave on the other side.It is thicker at the center than at the edges. The lens provides a smaller beam diameter in order to reduce the beam waste and spherical aberration. When a meniscus lens is combined with another lens, the focal length is shortened and the numerical aperture of the system is increased. This reduces the image distortion and increases image resolution.
The process capacity for Meniscus lens
● Material:N-BK7, H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.
● Diameter:5-200mm
● Tolerance: +/-0.05mm
● Thickness tolerance: +/-0.05mm
● Surface accuracy: λ/4 @632,8nm
● Centration : < 1 arc min
● Clear aperture : >90%
● S/D :60-40,40-20,20-10
● Coatings: AR coating,BBAR coating, customized available.
