● MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.

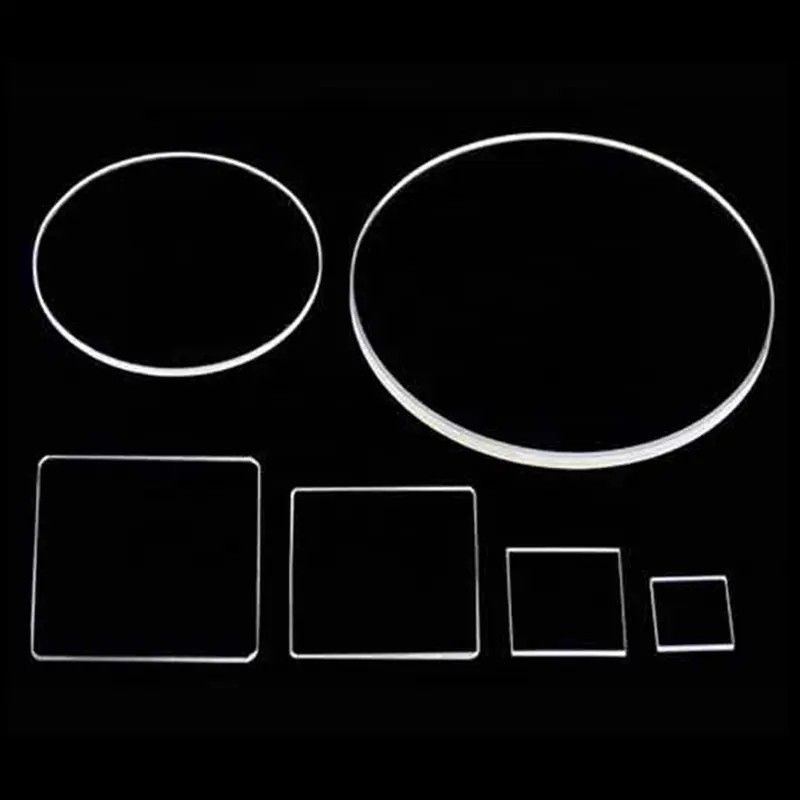

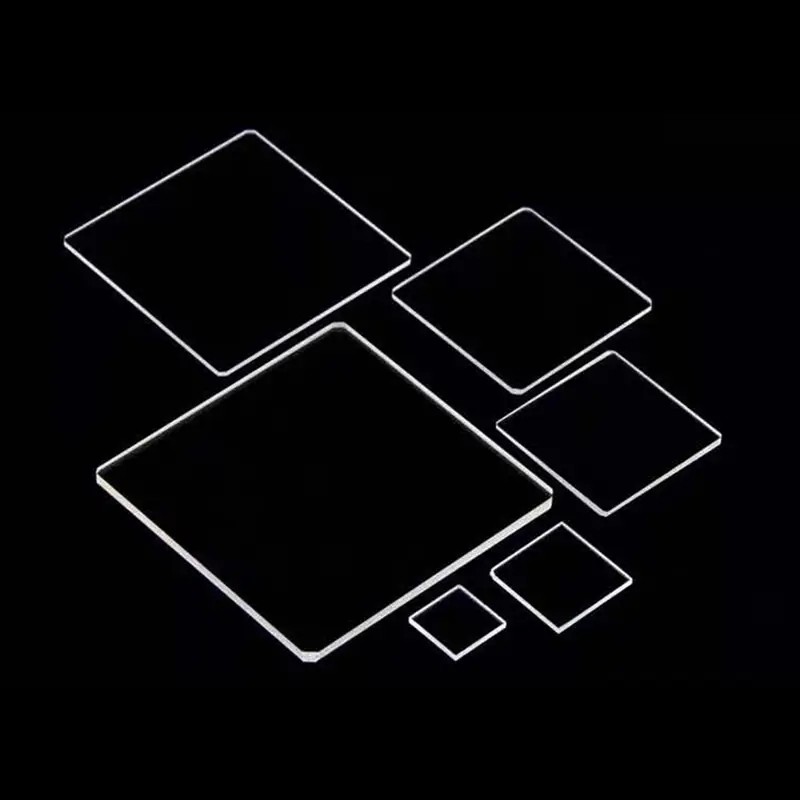

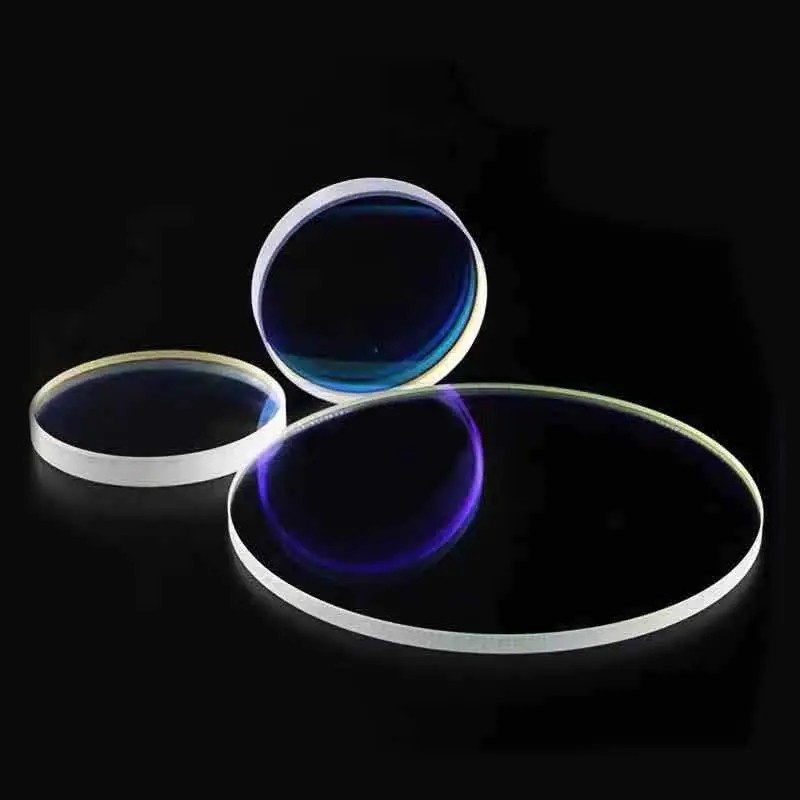

Laser Windows are used to provide a high degree of transmission of specified wavelengths for use in laser applications or safety needs. Laser Windows may be designed for either laser transmission or laser safety purposes. In safety applications, Laser Windows are designed to provide safe, observable surface through which to view a laser or laser system. Laser Windows may also be used to isolate a laser beam, reflecting or absorbing all other wavelengths. Several varieties of Laser Windows are available for both laser transmission or laser blocking applications.
The process capacity for the Laser window
Material:H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.
● Diameter:5-200mm
● Dimension Tolerance: +/-0.05mm
● Surface accuracy: λ/4 @632,8nm
● Clear aperture : >85%
● S/D :60-40,40-20,20-10
● Coatings: AR coating,BBAR coating, customized available.
